当前位置：

产品中心

——

降压DC/DC转换

深圳市PA捕鱼电子科技有限公司成立于2013年，是一家电子元器件代理商。主要产品包括：电源管理芯片、锂电池充电管理、锂电保护、DC转换器、MOS等产品。

13728779847

产品详情

型号	输入电压	输出电流	输出电压	FB/V OUT 精度	静态电流	开关频率	调制模式	同步	典型性能	封装
ME3107	2.7-5V	200mA	1.0-4.0V	V OUT±2.5%	0.76uA		PFM	√		SOT23-5
ME3101	0.9-6.5V	500mA	1.0-3.3V	V OUT±2%	60uA	1.2MHz	PFM/PWM	√		SOT23-5
ME3102	2.5-5.5V	1A	1.2-5V	0.6V±2%	40uA	1.5M 1.7MHz	PFM/PWM	√		SOT23-5/DFN2*2-6
ME3103	2.5-5.5V	1A	1.2-5V	0.6V±2%	40uA	1.5MHz	PFM/PWM	√		SOT23-5/DFN2*2-6
ME3104	2.5-5.5V	2A	0.6-5V	0.6V±2%	40uA	1.5MHz	PFM/PWM	√		SOT23-5/DFN2*2-6
ME3108	2.7-5.5V	2A	0.8-3.6V	V OUT±2%	15uA	1.2MHz	PFM/PWM	√		SOT23-5/SOT23-6
ME3109	2.7-5.5V	3A	0.8-3.6V	V OUT±2%	15uA	1.2MHz	PFM/PWM/PWMOR	√		DFN2*2-6

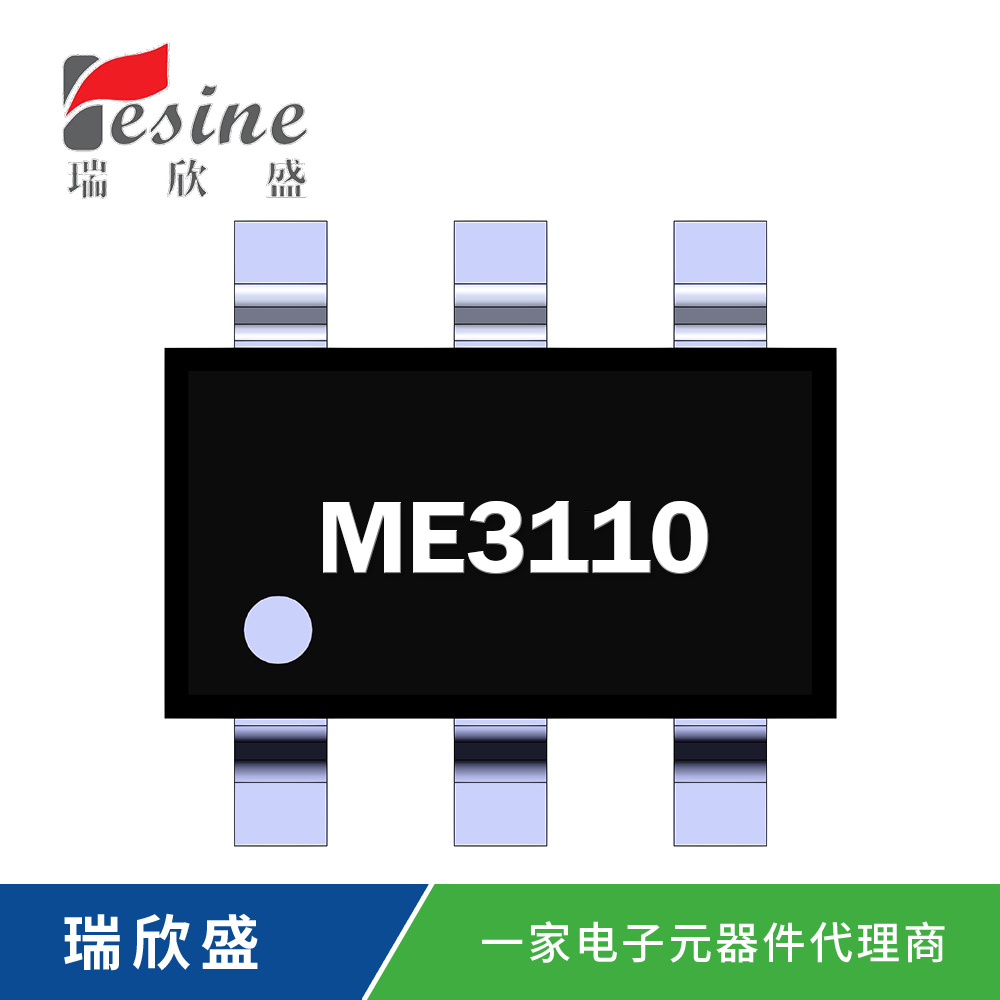

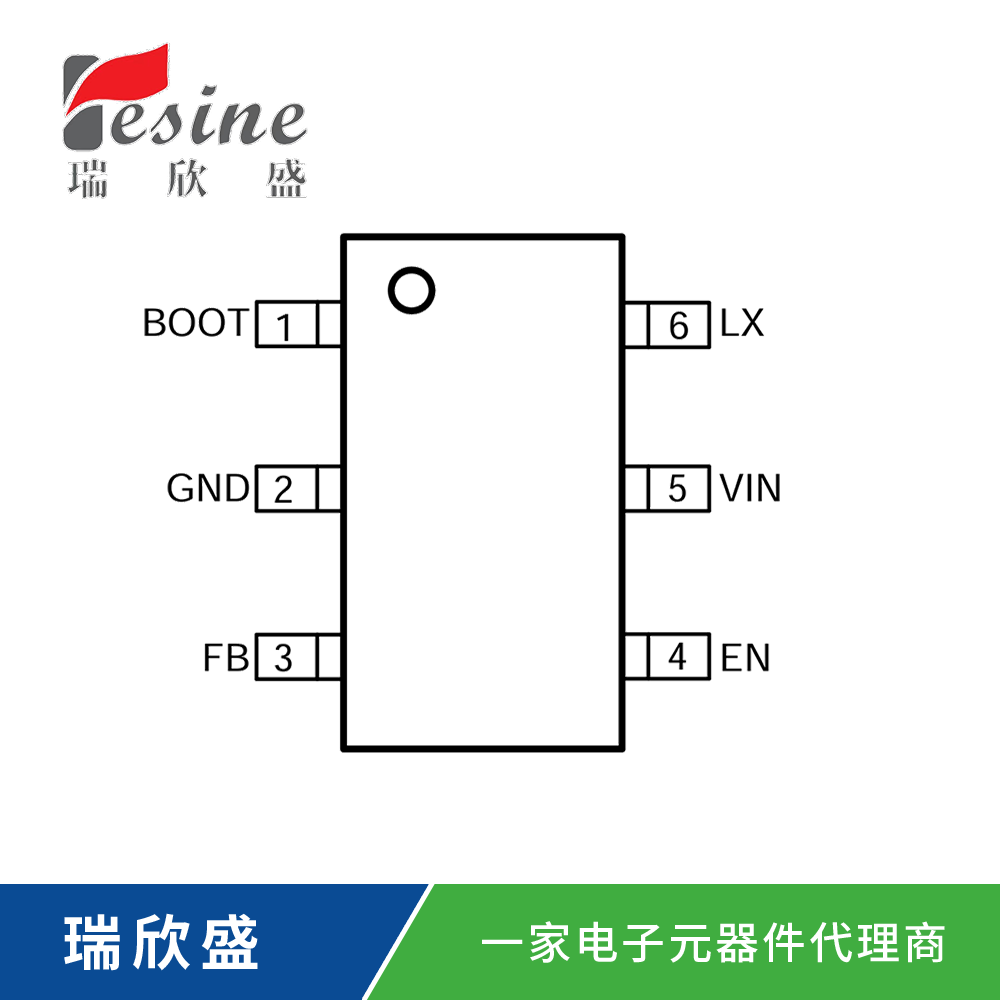

ME3110	4.8-18V	2A	1.2-7V	0.6V±2%	140uA	500KHz	PFM/PWM	√		SOT23-6
ME3111	4.8-18V	3A	1.2-7V	0.6V±2%	140uA	500KHz	PFM/PWM	√		TSOT23-6
ME3113	4.5-18V	3A	0.6-5V	0.6V±2%	135uA	500KHz	PFM/PWM	√		SOT23-6
ME3114	3.3-18V	10A	0.6-5V	0.6V=2%	135uA	200-2KHz	PFM/PWM	√		QFN14
ME3118	4.5-18V	5A	1.2-5V	0.8V±1.5%	1.6mA	500KHz	PWM	√		ESOP8/DFN3*3-8L
MEI3001	4.5-40V	0.6A	1.2-5V	0.8V±1.5%	1.3mA	550KHz	PWM			SOT23-6
ME3116	4.75-40V	1A	1.2-5V	0.8V±1.5%	1.3mA	550KHz	PWM			SOT23-6
ME3121	4.7-40V	1A	1.2-5V	0.6V±2%	135uA	1MHz	PFM/PWM	√		SOT23-6
ME3148	8-36V	3A	1.25-33V	1.25V±1.5%	2mA	160KHz	PWM			SOP8
ME3107	2.7-5V	200mA	1.0-4.0V	V OUT±2.5%	0.76uA		PFM	√	Low IQ 0.76uA	SOT23-5
ME3101	0.9-6.5V	500mA	1.0-3.3V	V OUT±2%	60uA	1.2MHz	PFM/PWM	√	EN/OCP/Soft Start/UVLO	SOT23-5
ME3102	2.5-5.5V	1A	1.2-5V	0.6V±2%	40uA	1.5M 1.7MHz	PFM/PWM	√	EN/SCP/OCP/Softs Art/OTP	SOT23-5/DFN2*2-6
ME3103	2.5-5.5V	1A	1.2-5V	0.6V±2%	40uA	1.5MHz	PFM/PWM	√	EN/SCP/OCP/Softs Art/OTP	SOT23-5/DFN2*2-6
ME3104	2.5-5.5V	2A	0.6-5V	0.6V±2%	40uA	1.5MHz	PFM/PWM	√	EN/SCP/OCP/Softs Art/OTP	SOT23-5/DFN2*2-6
ME3108	2.7-5.5V	2A	0.8-3.6V	V OUT±2%	15uA	1.2MHz	PFM/PWM	√	COT Control	SOT23-5/SOT23-6
ME3109	2.7-5.5V	3A	0.8-3.6V	V OUT±2%	15uA	1.2MHz	PFM/PWM/PWMOR	√	COT Control	DFN2*2-6
ME3110	4.8-18V	2A	1.2-7V	0.6V±2%	140uA	500KHz	PFM/PWM	√	CM COT/SCP	SOT23-6
ME3111	4.8-18V	3A	1.2-7V	0.6V±2%	140uA	500KHz	PFM/PWM	√	CM COT/SCP	TSOT23-6
ME3113	4.5-18V	3A	0.6-5V	0.6V±2%	135uA	500KHz	PFM/PWM	√	CM COT/SCP	SOT23-6
ME3114	3.3-18V	10A	0.6-5V	0.6V=2%	135uA	200-2KHz	PFM/PWM	√	CM COT/SCP	QFN14
ME3118	4.5-18V	5A	1.2-5V	0.8V±1.5%	1.6mA	500KHz	PWM	√	EN/SCP/OCP/Soft Start/OTP	ESOP8/DFN3*3-8L
MEI3001	4.5-40V	0.6A	1.2-5V	0.8V±1.5%	1.3mA	550KHz	PWM		EN/SCP/OCP/UVLO/OTP	SOT23-6
ME3116	4.75-40V	1A	1.2-5V	0.8V±1.5%	1.3mA	550KHz	PWM		EN/SCP/OCP/UVLO/OTP	SOT23-6
ME3148	8-36V	3A	1.25-33V	1.25V±1.5%	2mA	160KHz	PWM		SCP/OCP/UVLO/OTP	SOP8
ME3121	4.7-40V	1A	1.2-5V	0.6V±2%	135uA	1MHz	PFM/PWM	√	CM COT/SCP	SOT23-6

降压DC/DC转换

13728779847

产品详情

型号	输入电压	输出电流	输出电压	FB/V OUT 精度	静态电流	开关频率	调制模式	同步	典型性能	封装
ME3107	2.7-5V	200mA	1.0-4.0V	V OUT±2.5%	0.76uA		PFM	√		SOT23-5
ME3101	0.9-6.5V	500mA	1.0-3.3V	V OUT±2%	60uA	1.2MHz	PFM/PWM	√		SOT23-5
ME3102	2.5-5.5V	1A	1.2-5V	0.6V±2%	40uA	1.5M 1.7MHz	PFM/PWM	√		SOT23-5/DFN2*2-6
ME3103	2.5-5.5V	1A	1.2-5V	0.6V±2%	40uA	1.5MHz	PFM/PWM	√		SOT23-5/DFN2*2-6
ME3104	2.5-5.5V	2A	0.6-5V	0.6V±2%	40uA	1.5MHz	PFM/PWM	√		SOT23-5/DFN2*2-6
ME3108	2.7-5.5V	2A	0.8-3.6V	V OUT±2%	15uA	1.2MHz	PFM/PWM	√		SOT23-5/SOT23-6
ME3109	2.7-5.5V	3A	0.8-3.6V	V OUT±2%	15uA	1.2MHz	PFM/PWM/PWMOR	√		DFN2*2-6
ME3110	4.8-18V	2A	1.2-7V	0.6V±2%	140uA	500KHz	PFM/PWM	√		SOT23-6
ME3111	4.8-18V	3A	1.2-7V	0.6V±2%	140uA	500KHz	PFM/PWM	√		TSOT23-6
ME3113	4.5-18V	3A	0.6-5V	0.6V±2%	135uA	500KHz	PFM/PWM	√		SOT23-6
ME3114	3.3-18V	10A	0.6-5V	0.6V=2%	135uA	200-2KHz	PFM/PWM	√		QFN14
ME3118	4.5-18V	5A	1.2-5V	0.8V±1.5%	1.6mA	500KHz	PWM	√		ESOP8/DFN3*3-8L
MEI3001	4.5-40V	0.6A	1.2-5V	0.8V±1.5%	1.3mA	550KHz	PWM			SOT23-6
ME3116	4.75-40V	1A	1.2-5V	0.8V±1.5%	1.3mA	550KHz	PWM			SOT23-6
ME3121	4.7-40V	1A	1.2-5V	0.6V±2%	135uA	1MHz	PFM/PWM	√		SOT23-6
ME3148	8-36V	3A	1.25-33V	1.25V±1.5%	2mA	160KHz	PWM			SOP8
ME3107	2.7-5V	200mA	1.0-4.0V	V OUT±2.5%	0.76uA		PFM	√	Low IQ 0.76uA	SOT23-5
ME3101	0.9-6.5V	500mA	1.0-3.3V	V OUT±2%	60uA	1.2MHz	PFM/PWM	√	EN/OCP/Soft Start/UVLO	SOT23-5
ME3102	2.5-5.5V	1A	1.2-5V	0.6V±2%	40uA	1.5M 1.7MHz	PFM/PWM	√	EN/SCP/OCP/Softs Art/OTP	SOT23-5/DFN2*2-6
ME3103	2.5-5.5V	1A	1.2-5V	0.6V±2%	40uA	1.5MHz	PFM/PWM	√	EN/SCP/OCP/Softs Art/OTP	SOT23-5/DFN2*2-6
ME3104	2.5-5.5V	2A	0.6-5V	0.6V±2%	40uA	1.5MHz	PFM/PWM	√	EN/SCP/OCP/Softs Art/OTP	SOT23-5/DFN2*2-6
ME3108	2.7-5.5V	2A	0.8-3.6V	V OUT±2%	15uA	1.2MHz	PFM/PWM	√	COT Control	SOT23-5/SOT23-6
ME3109	2.7-5.5V	3A	0.8-3.6V	V OUT±2%	15uA	1.2MHz	PFM/PWM/PWMOR	√	COT Control	DFN2*2-6
ME3110	4.8-18V	2A	1.2-7V	0.6V±2%	140uA	500KHz	PFM/PWM	√	CM COT/SCP	SOT23-6
ME3111	4.8-18V	3A	1.2-7V	0.6V±2%	140uA	500KHz	PFM/PWM	√	CM COT/SCP	TSOT23-6
ME3113	4.5-18V	3A	0.6-5V	0.6V±2%	135uA	500KHz	PFM/PWM	√	CM COT/SCP	SOT23-6
ME3114	3.3-18V	10A	0.6-5V	0.6V=2%	135uA	200-2KHz	PFM/PWM	√	CM COT/SCP	QFN14
ME3118	4.5-18V	5A	1.2-5V	0.8V±1.5%	1.6mA	500KHz	PWM	√	EN/SCP/OCP/Soft Start/OTP	ESOP8/DFN3*3-8L
MEI3001	4.5-40V	0.6A	1.2-5V	0.8V±1.5%	1.3mA	550KHz	PWM		EN/SCP/OCP/UVLO/OTP	SOT23-6
ME3116	4.75-40V	1A	1.2-5V	0.8V±1.5%	1.3mA	550KHz	PWM		EN/SCP/OCP/UVLO/OTP	SOT23-6
ME3148	8-36V	3A	1.25-33V	1.25V±1.5%	2mA	160KHz	PWM		SCP/OCP/UVLO/OTP	SOP8
ME3121	4.7-40V	1A	1.2-5V	0.6V±2%	135uA	1MHz	PFM/PWM	√	CM COT/SCP	SOT23-6
